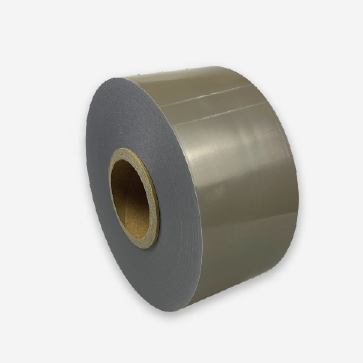

PTFE COLOR DIRECTIONAL TREATMENT FILM

Description

AxisTape PTFE Color Directional Treatment Film is manufactured from high-quality virgin polytetrafluoroethylene (PTFE) resin and enhanced through an advanced directional surface treatment process. This specialized process improves color uniformity, surface gloss, and overall film consistency, addressing common issues such as uneven coloration and low surface brightness found in conventional PTFE films.

While maintaining the core advantages of PTFE, including excellent dielectric insulation, chemical resistance, and wide temperature stability, this film also features a non-stick untreated surface and low friction performance. With a working temperature range from -70°C to 260°C, AxisTape PTFE Color Directional Treatment Film is suitable for high-performance industrial and electronic applications where both visual consistency and functional performance are critical.

Product Characteristics

• Directional Surface Treatment: AxisTape PTFE Color Directional Treatment Film is processed with a specialized directional treatment, enhancing surface consistency and functional performance.
• Improved Color Uniformity: Engineered to minimize color variation, the film provides a more consistent and visually uniform appearance.
• Enhanced Surface Gloss: Optimized processing improves surface smoothness and gloss, delivering a higher-quality finish compared to standard PTFE films.
• Excellent Insulation Performance: Maintains strong dielectric properties, making it suitable for electrical insulation applications.
• Chemical Resistance: Resistant to acids, alkalis, and UV exposure, ensuring long-term durability without aging.
• Wide Temperature Resistance: Operates reliably across a temperature range from -70°C to 260°C.
• Non-Stick Untreated Surface: The untreated side retains low surface energy, providing excellent anti-adhesion performance.
• Low Friction Coefficient: Ensures smooth sliding behavior and reduced wear in mechanical applications.

Applications

• Electrical Insulation Films: Used in electronic and electrical systems requiring stable insulation and consistent film quality.
• Color-Coded Industrial Applications: Suitable for applications where color differentiation is required, such as identification, classification, or visual control systems.
• Precision Mechanical Components: Applied in sliding surfaces and guide systems where smoothness and low friction are essential.
• Release & Processing Films: Used in molding and composite processing industries where controlled release and surface consistency are required.
• Decorative & Functional Surfaces: Suitable for applications combining visual appearance and functional performance.
• High-Performance Industrial Use: Widely applied in aerospace, electronics, machinery, and other industries requiring both durability and surface quality.

Customizable Options

• Thickness Options: Available in 0.09 mm and 0.1 mm with precise tolerance control (±0.005 mm).
• Width Range: Custom widths available from 90 mm to 300 mm.
• Color Selection: Available in red, blue, natural color, and increased white, with additional customization options.
• Surface Directional Treatment: Customized directional processing available to meet specific application requirements.
• Cutting & Format: Supplied in rolls or custom-cut formats based on customer needs.

Product Specifications

Thickness	0.09 mm (±0.005) 0.1 mm (±0.005)
Width	90–300 mm
Color	Red, blue, natural color, increased white



Ordering & Technical Support

AxisTape provides flexible minimum order quantities, competitive pricing, and worldwide delivery. For custom specifications or technical inquiries, please feel free to contact us for a detailed consultation or email us at info@axistape.com.
