UHMW-PE Film Tape AT4430 (Similar to Nitto No.4430)

Description

AT4430 is a pressure-sensitive UHMW-PE film tape designed for sliding, lining, and wear-protection applications. Similar to Nitto No.4430, it uses ultra-high molecular weight polyethylene film as the backing and features excellent adhesion between the backing and adhesive layer. Compared with tapes using ordinary plastic films, AT4430 offers strong impact resistance, excellent weatherability, self-lubricating performance, stable chemical resistance, and low moisture absorption. It is suitable for guide rails, conveyor surfaces, packaging-machine rollers, hoppers, chutes, appliance sliding parts, and machinery liners requiring smooth movement and durable low-friction protection.

Key Features

• High Impact Resistance: The UHMW-PE film provides notably strong impact resistance compared with many other plastic materials.
• Excellent Weatherability: The tape maintains stable performance in applications exposed to changing environmental or operating conditions.
• Self-Lubricating Surface: The UHMW-PE surface supports smooth sliding performance without requiring additional lubrication in many applications.
• Stable Chemical Resistance: It offers stable chemical resistance, except against strong concentrated inorganic acids and aromatic solvents.
• Low Moisture Absorption: The non-water-absorbing and non-hygroscopic properties help maintain consistent sliding and lining performance.
• Improved Adhesion Between Layers: AT4430 is designed with excellent adhesion between the backing and adhesive layer for more reliable tape construction.

Applications

• Guide Rail and Sliding Surface Protection: Used to wrap guide rails and sliding surfaces in case fillers, labeling equipment, vending machines, and automated systems.
• Conveyor and Worktable Surface Lining: Suitable for covering conveyor guide rail surfaces and worktable surfaces in transport equipment.
• Packaging Machine Roller Protection: Used on roller and forming sections in film or paper packaging machines to improve sliding performance.
• Hopper, Chute, and Spacer Lining: Suitable as liners for hoppers, chutes, and gasket or spacer surfaces exposed to sliding contact.
• Machinery Sliding Surface Lining: Used as a low-friction liner for home appliances, copiers, textile machines, bookbinding machines, and printing machines.

Technical Specifications

Color	White / Black
Standard Thickness Options	0.13 mm, 0.20 mm, 0.25 mm
Standard Width Options	13 mm, 19 mm, 25 mm, 50 mm, 75 mm, 100 mm, 300 mm, 350 mm
Standard Length Options	10 m, 30 m, 50 m
Backing Material	UHMW-PE Film (Ultra-High Molecular Weight Polyethylene Film)
Adhesive Type	Acrylic Adhesive (thick type)
Backing Thickness	White: 0.13 mm Black: 0.13 mm
Total Thickness	White: 0.16 mm Black: 0.16 mm
Tensile Strength	White: 55.3 MPa Black: 51.3 MPa
Elongation	White: 400% Black: 380%
Peel Strength on Stainless Steel	White: 10.9 N/20 mm width Black: 10.6 N/20 mm width
Surface Resistance	White: 10^16 Ω Black: 10^6 Ω
Copper Corrosion	White: Discoloration Black: Discoloration

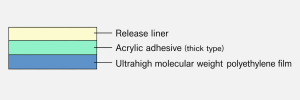

Structure

Customizable Options

• Custom Widths and Lengths: Available in slit rolls or converted roll sizes according to guide rail, conveyor, and equipment lining requirements.
• Thickness Selection: Multiple thickness options can be selected based on flexibility, wear resistance, and sliding-surface requirements.
• Color Options: White and black versions can be selected according to appearance, identification, or surface-resistance needs.
• Die-Cut Shapes: Can be converted into strips, pads, liners, spacers, and custom sliding-surface protection parts.

Ordering & Technical Support

AxisTape provides flexible minimum order quantities, competitive pricing, and worldwide delivery. For custom specifications or technical inquiries, please feel free to contact us for a detailed consultation or email us at info@axistape.com.
