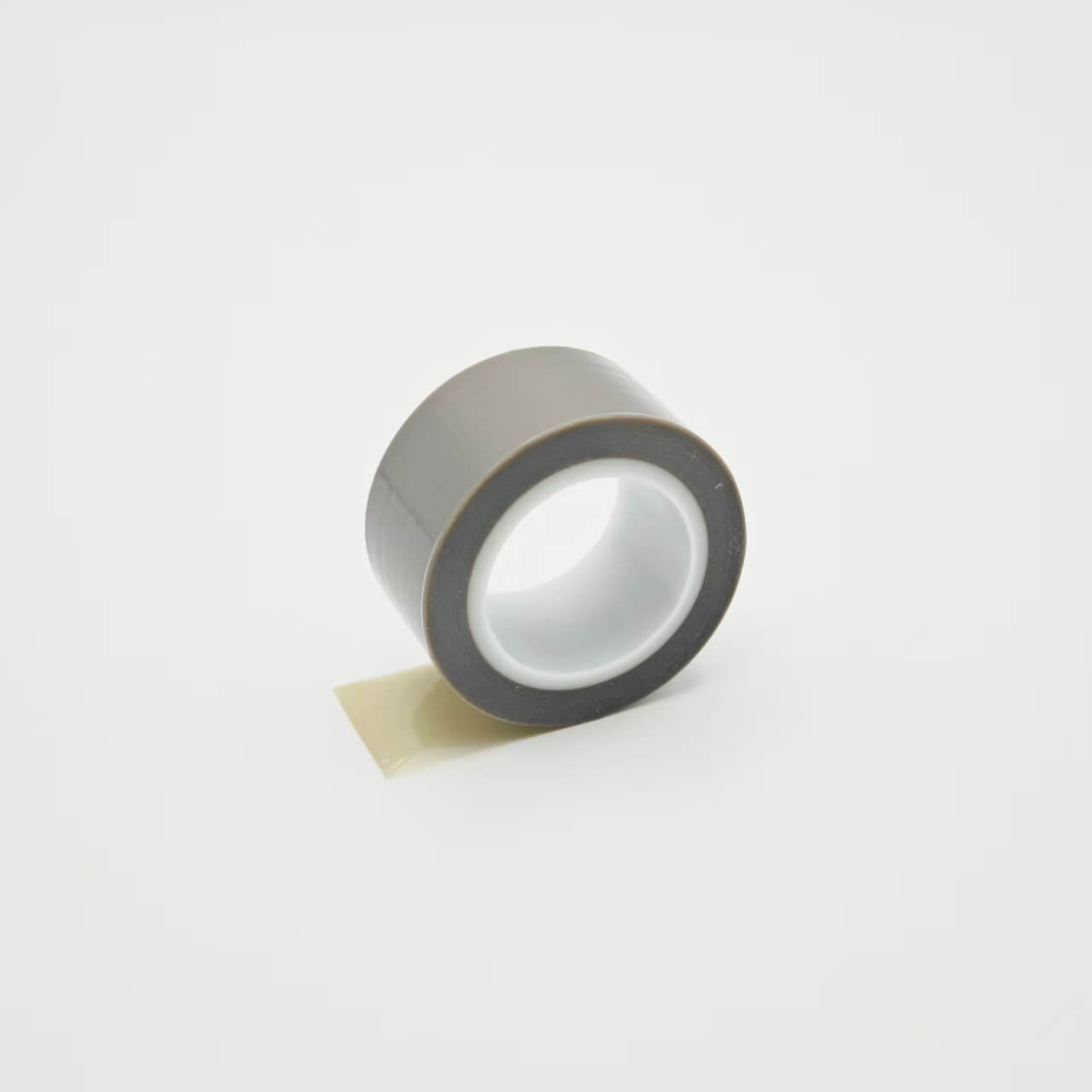

PTFE Tape 3100MSD
- High Temperature Resistance: With a wide operational temperature range from -80°C to 260°C, this tape excels in environments subjected to both freezing and high heat.
- Strong Adhesion: Provides ≥6N/25mm peel strength, ensuring strong bonding even in challenging conditions.
- Durable: With a 175g/m² weight and <200% elongation at break, it offers flexibility and durability under tension and stress.
- Precise Dimensions: The tape comes in a 500mm width and 10m length, with a finished product thickness of 0.10mm, ideal for a variety of industrial applications.
- Lightweight and Thin: At just 0.04mm adhesive thickness, this tape is lightweight yet strong enough to maintain consistent adhesion and performance.
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
PTFE Tape 3100MSD is an advanced adhesive tape featuring a 0.1mm PTFE film combined with a 0.04mm silicone adhesive. This tape is specially designed for demanding industrial applications, offering exceptional performance in high-temperature and high-wear environments. The tape is ideal for insulation, sealing, and protection in systems exposed to extreme conditions.
Technical Specifications
| Adhesive Thickness | 0.04mm |
| Length | 10m |
| Width | 500mm |
| Finished Product Thickness | 0.10mm |
| Finished Product Weight | 175g/m² |
| Peel Strength (90°TEST) | ≥6N/25mm |
| Elongation at Break | ＜200% |
| Long term temperature resistance | (-80~260℃) |
Standards Compliance
Tested according to GB/T7689.1, ASTM D4851-88, ASTM D3759, and GB/T2423.1 to ensure consistent quality and performance.
Key Features
- High Temperature Resistance: With a wide operational temperature range from -80°C to 260°C, this tape excels in environments subjected to both freezing and high heat.
- Strong Adhesion: Provides ≥6N/25mm peel strength, ensuring strong bonding even in challenging conditions.
- Durable: With a 175g/m² weight and <200% elongation at break, it offers flexibility and durability under tension and stress.
- Precise Dimensions: The tape comes in a 500mm width and 10m length, with a finished product thickness of 0.10mm, ideal for a variety of industrial applications.
- Lightweight and Thin: At just 0.04mm adhesive thickness, this tape is lightweight yet strong enough to maintain consistent adhesion and performance.
Applications
- Sealing & Insulation: Perfect for sealing and insulation in electrical systems, automotive components, and industrial machinery.
- High-Temperature Environments: Ideal for use in situations where high heat or cold is involved, such as in food processing or manufacturing industries.
- Electrical: Widely used for insulation in electrical circuits, offering protection from heat, chemicals, and mechanical stress.
- General Industrial Use: Suitable for general-purpose sealing, insulation, and protective applications in industries like automotive, manufacturing, and electronics.
Structure
Customizable Options
At AxisTape, we offer PTFE Tape 3100MSD in various sizes and thicknesses to meet your specific needs:
- Width & Length: Available in customized lengths and widths.
- Custom Adhesion Strength: Tailored adhesion options available to suit different bonding needs.
- Colors: Standard transparent finish with custom colors available upon request.
Storage Recommendations
For optimal performance, PTFE Tape 3100MSD should be stored in a dry, indoor environment at a temperature range of 5°C to 30°C. Keep away from direct sunlight, high humidity, and temperatures outside the recommended range.
Ordering & Technical Support
AxisTape provides flexible minimum order quantities, competitive pricing, and worldwide delivery. For custom specifications or technical inquiries, please feel free to contact us for a detailed consultation or email us at info@axistape.com.
